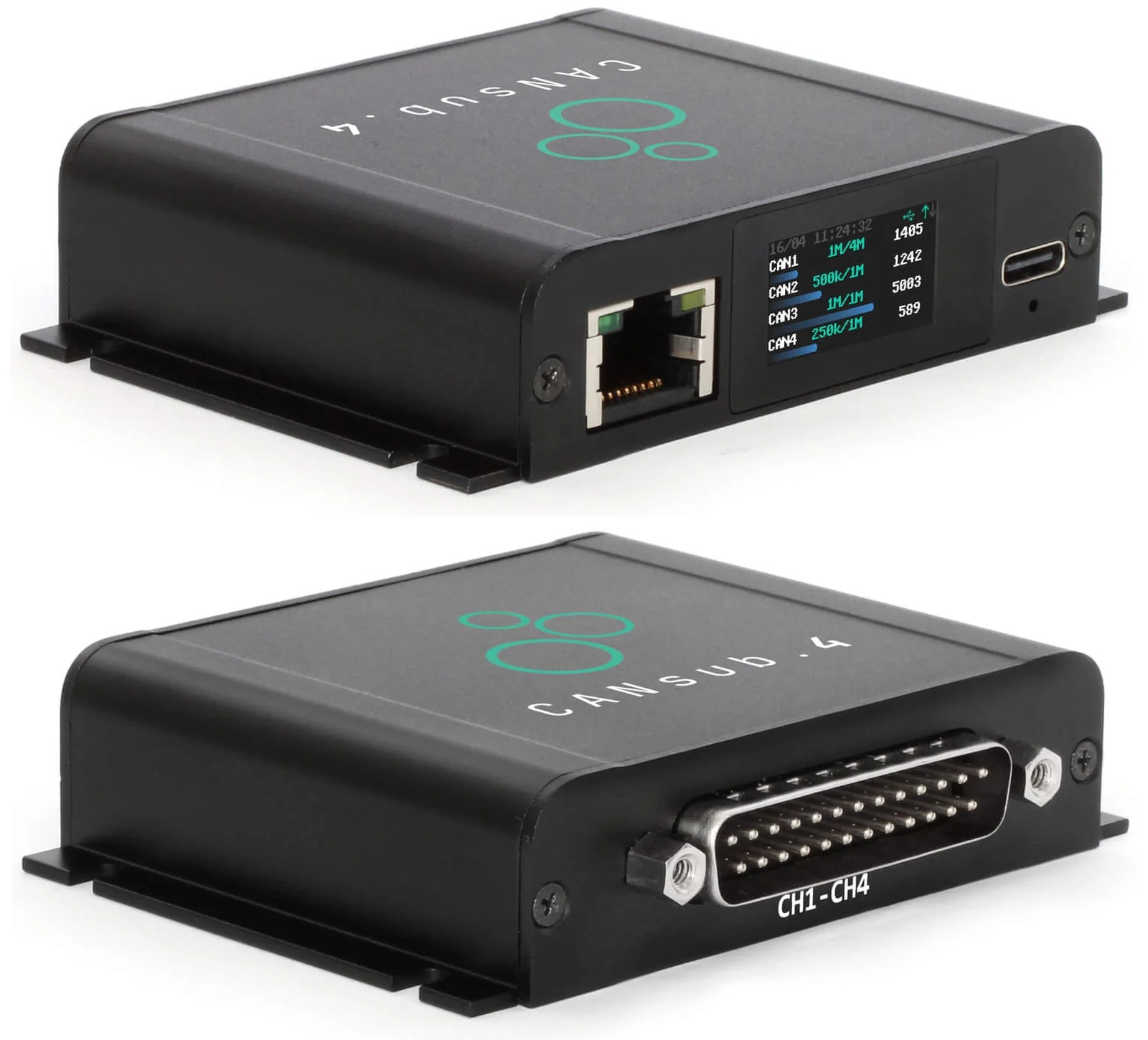

CANsub.4

Catalog No.: CANsub.4

Features:

• 4 x CAN CC/FD
• Stream CAN bus data via either USB or Ethernet
• Built-in LCD display shows device URL and CAN status
• webCAN app runs on device
• 20,000+ frames/second with 1 μs timestamp resolution
• Configurable silent mode and hardware ID filters, per chanel
• CAN error frame and remote frame (RTR) support
• Configure/stream via USB or Ethernet
• HTTPS (TLS 1.2) encrypts all data communication
• Power supply +5V via USB connector (optional PoE adapter)
• Consumption <1W
• Dimensions 75 x 67 x 20 mm
• Weight 90 g
• Temperature -25°C to +70°C
• IP40
