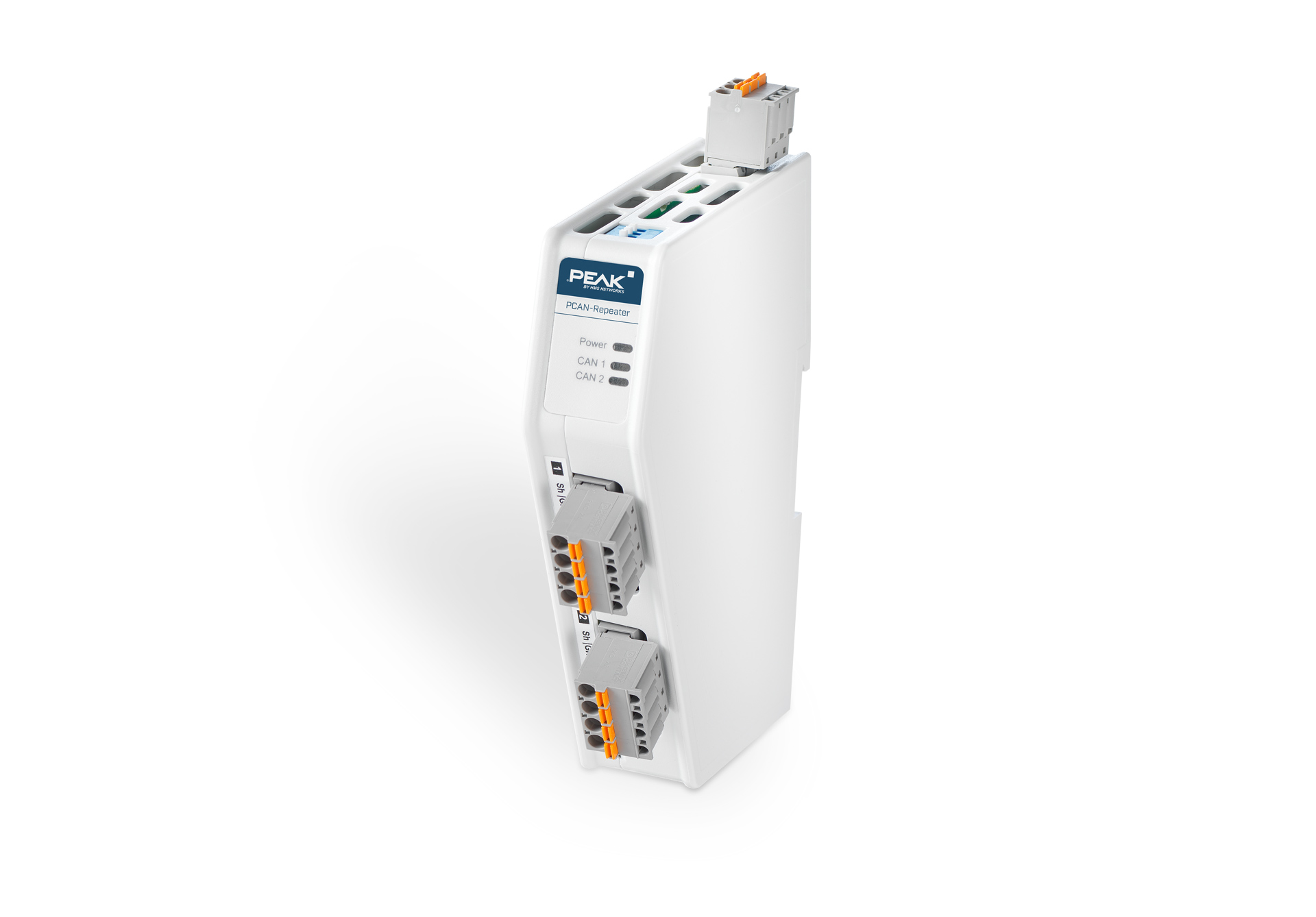

PCAN-Repeater

Catalog No.: IPEH-004039

Features:

• Two High-speed CAN ports (ISO 11898-2)Comply with CAN specifications CAN CC (classic CAN 2.0) and CAN FD (ISO and non-ISO)
• CAN bit rates from 14 kbit/s up to 1 Mbit/s
• CAN FD bit rates for the data field (64 bytes max.) from 14 kbit/s to 8 Mbit/s
• CAN transceiver TI TCAN1044 or compatible
• Connections for CAN via 4-pin and power supply via 3-pin push-in spring terminal blocks (Phoenix)
• Galvanic isolation rated up to 5 kV according to IEC 60601-1, between both CAN ports and between CAN and power supply
• Each CAN port can be selectively terminated via switches at the housing front
• LEDs indicate power supply, CAN traffic, and transmission errors on physical level
• Automatic disconnection of a defective CAN segment and reconnection once the fault has been resolved; for example, due to a short circuit or a CAN node with broken transceiver
• Transit delay about 175 ns, which corresponds to a cable length of approximately 35 m
• Voltage supply from 10 to 30 V
• Plastic housing (width: 27 mm) for mounting on a DIN rail (EN 50022 standard)
• Extended operating temperature range from -40 to +85 °C
